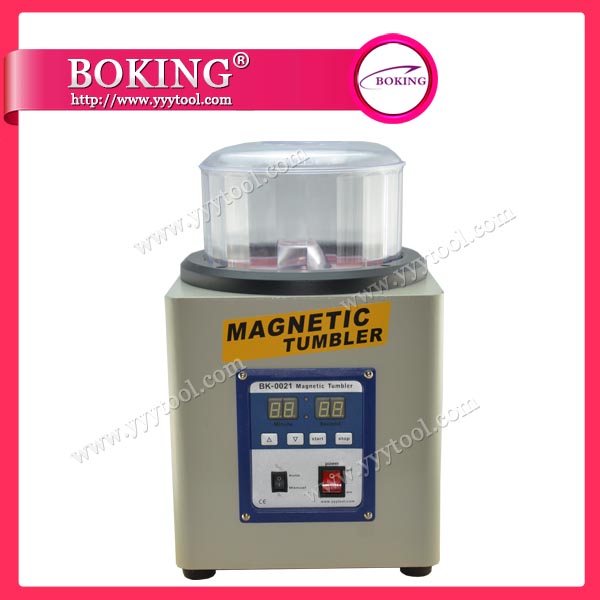

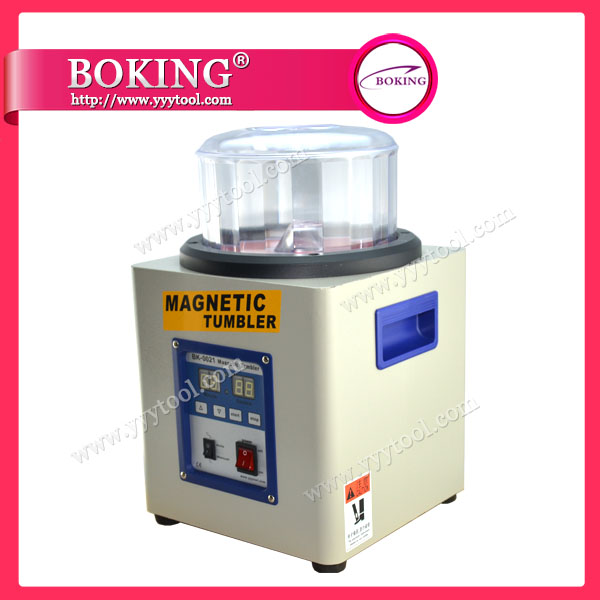

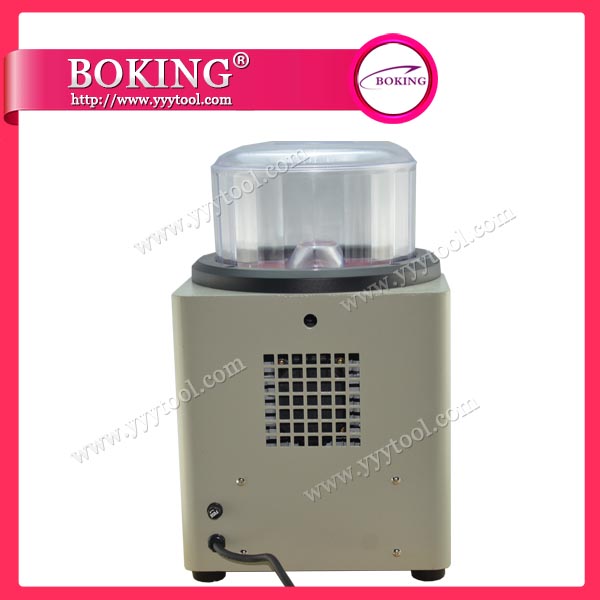

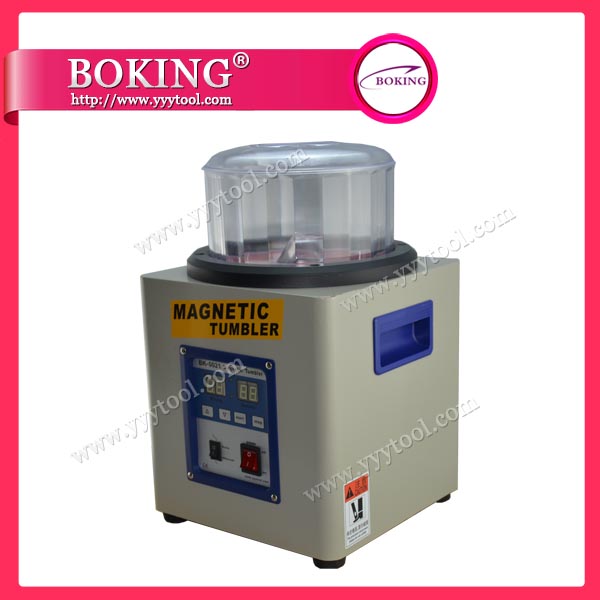

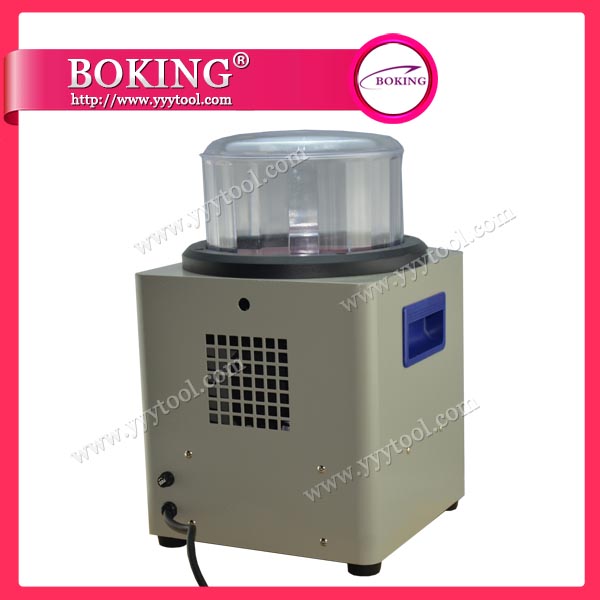

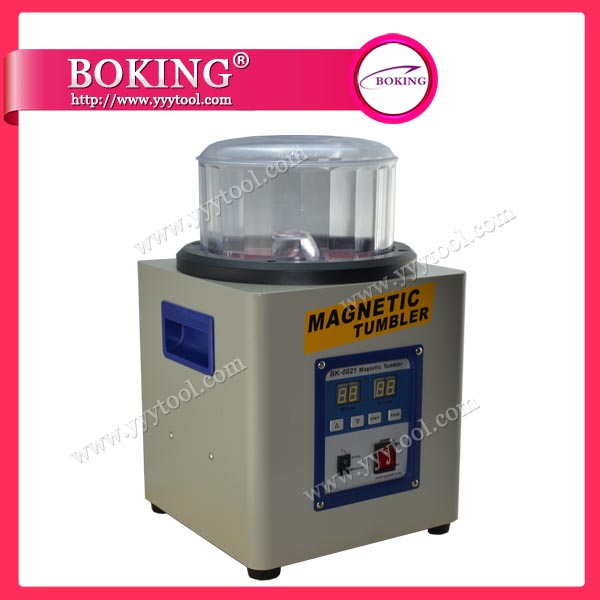

Dimension:270*270*400mm,
Weight:20kg,
Capacity:800g,
Speed:280rpm,
Voltage:220V-110V,
Bucket Dimension:195*135mm,
Two-Ways,
Packing Size:490X325X335mm.
Safety Instructions:
Before using your machie, please read all safety instructions. They are for your protection and should always be allowed to reduce the risk of personal injury or damage to the tool.
Never operate your machine during a perceptible power decrease. Turn the machine off and do not use unitl power is fully restored.
The magnetic disk that actually turns the pins is made up of many powerful magnets that are precisely placed in a cast disk. The alternating polarity is constantly changing, thereby allowing the media to move freely in a liquid solution that is constantly changing its make-up. This combined with centrifugal force, allows for super quiet and fast time cycles to perform a myriad of applications.
Code | Pins Capacity | Timer | ring capacity | Timer tumbling | Bow Dia | variable speed | |
BK-0103 | 250 | digital | 200 | 0-60 minutes | 155*115mm | yes | |
BK-0019 | 200 | mechanical | 200 | 0-60 minutes | 100*105mm | yes | |
BK-0020 | 400 | mechanical | 300 | 0-60 minutes | 180*100mm | yes | |
BK-0021 | 600 | digital | 350 | 0-60 minutes | 180*100mm | yes | |
BK-0023 | 800 | digital | 400 | 0-90minutes | 255*160mm | yes | |
BK-0024 | 1100 | mechanical | 500 | 0-90minutes | 290*170mm | yes |
Model | Name | size | |||||
Magnetic Pins, Stainless Steel material, Application: Magnetic Tumbler. | Φ0.2X5mm | ||||||
BK-1019 | Φ0.3X5mm | ||||||
Φ0.4X5mm | |||||||
Φ0.5X5mm | |||||||
Φ0.6X5mm |
Cautions:
■ Always make sure that the unit is plugged into a properly grounded outlet.
■ Do not remove bowl from its base unless unit is turned off.
■ At no time should you place your hands inside the working chamber while the machine is running. Always make sure that the machine is turned off before performing this operation.
■ When the machine is not un use, remove the bowl from the machine base.
■ Do not fill the chamber past the recommended maximum fill line to avoid spillage.
■ Do not place any items that are affected by magnetism, such as computer disks, credit cards, etc. on or near your magnetic finisher.
Unpacking Your Magnetic Finisher
Upon unpacking your finisher. After removing all the components from the packaging, fill the bowl provided with the correct amount of pins (all the pins that are provided,The pins must be purchased separately)
Before you insert the pieces you are going to tumble, be sure to fill the chamber with water to the "fill line". Never exceed filling the bowl past the maximum line. Once the water is in place, you then must add the compound. Add 4-5 drops of compound. As a side note, if your pins should turn black in the beginning, they require cleaning. To clean, fill the bowl with water to the "minimum" line and then add sufficient amount of a suitable cleaning compound to bring the level up to the "maximum" line. Run for approximately five minutes, rinse and then repeat this cycle one more time. It€™s a good idea to clean the shot regularly.
Instructions and Cycle Times of Machines

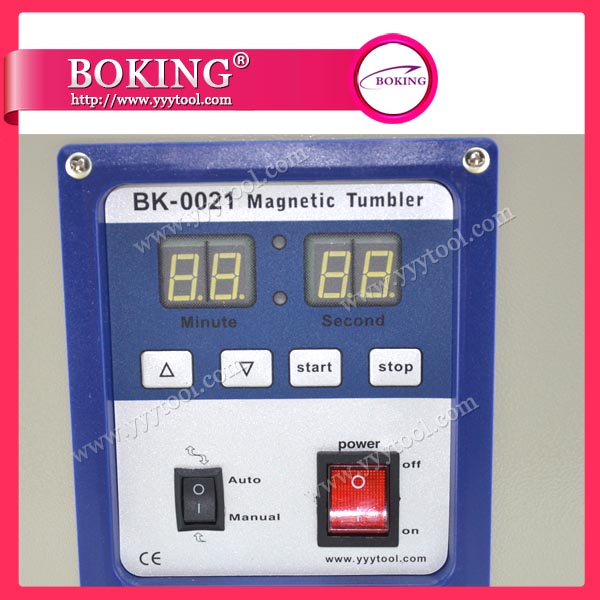

Now you are ready to put your pieces to be finished in the Magnetic Finisher. Turn the machine on. If you have put too many pieces in bowl, the speed of motion will be reduced, and the finishing time will increase. After turning on the machine, set the time for the number of minutes you want to finish your pieces. Most metals will achieve the desired effect in 30-40 minutes. It is a good practice to check the parts progress after the first 20 minutes. If your cycle time ends and you feel you have not reached the desired result, set the time for an additional 10 minutes. As you check your parts for progress, you will notice that the water solution is quite "warm". This is a normal result of friction between your pieces and the stainless steel media pins while processing is occurring.
It is important to keep the machine clean during the working cycles. We recommend that, after each work cycle, remove the bowl and clean it thoroughly.
Storage
After you finish using your finisher, always remove the bowl from its base and store with the base on a workbench or table. It is also a good practice to unplug your machine daily after each use or if the machine will not be used for a period of time. This practice prevents small children from playing with the controls and accidentally turning the machine on.
Important
Steel shot should be cleaned with oxalic acid prior to use and periodically afterward. Use Joy brand dishwashing liquid as a burnishing soap.
Repair Service
Factory repairs are done promptly and reasonable cost. If you wish, you can send your equipment directly to the factory service Dept. Be sure to give your street address and telephone number. The equipment should be accompanied by a brief note describing the problem. Estimates will be made u pon request.
LIMITED WARRANTY
BOKING INDUSTRY CO., LTD warrats the magnetic tumbler to the free of defects in material or workmanship for a period of 1 year after purchase. During the warranty period, the defective product will be repaired without charge or, at our option, the purchase price will be refund. This warranty does not over damage caused in the transit or by accident , misuse, or ordinary wear.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING ONE YEAR FROM DATE OF PURCHASE, AND WE WILL NOT BE LIABLE OR RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES.
All warraty repair must be done at the factory at the above address. We will not pay any shipping or transportation charges. This warranty only covers the original purchaser of the product. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
