Auto Vacuum Casting Machine

Model: BK-0161

Power Supply 380V 50Hz , 3 phase Power Input 15KW Vacuum speed -760mmHg,15L/sec Max temp 1450℃ Melting speed 3-5min Max pressure 2500hps Capacity 2.4KG.(18k gold) Suitable Metal K Gold,Gold, silver, copper Casting item size 127MM*235MM Cooling water water chiller or tap water (optional) Outside size W800xD900H1300mm Weight 155KG Description 1. PID temp control system, max temp 1450℃, temp tolerance ±2℃. 2. Strong electromagnetic stirring to ensure metal with even color. 3. Automatic control and induction heating, high intelligent, fully auto or semi auto is for option, Chinese and English are swiched. 4. More than 50 memory programs, any time you can check and change parameter setting, improve your casting quality, various casting mode for option. 5. Whole casting process can visually seen, air pressing lock system, equipped with safety valve to ensure safety. 6. Both melting and casting are done under vacuum condition, maximally control oxidation. 7. Casting cylinder go up and down automatically helps casted items to be took out easily. 8. Various size casting cylinder is for option. 9. Big capacity, can cast 2.4kg 18k gold. 10.Various alarm system, unit stops working immediately if any error occurred,maximally protect machine. 11.Compact design , small size. 12.Beading machine is for option. 13.Unique casting cylinder separated from vacuum device, to reduce bubble to minimum. 14.Touch interface, chinese and english adjustable, perfect combination of traditional workmanship and advanced technolo

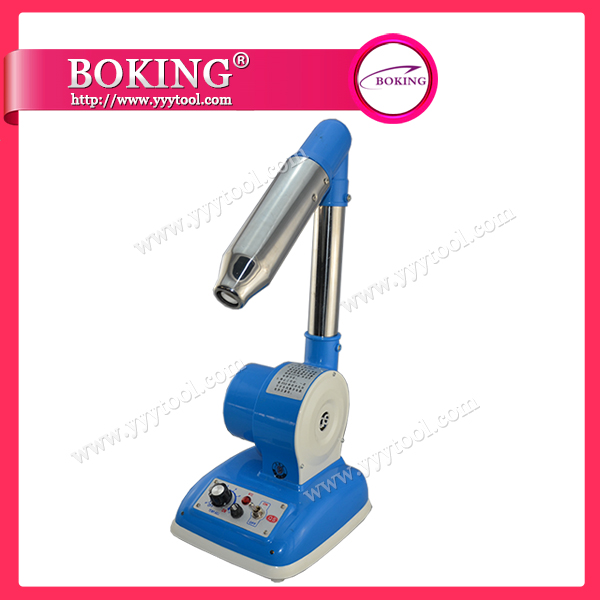

Jewelry Special Induction Dryer

Model: BK-0162

Size:20x23x50cm, Voltage:220V, Power:800W. 1."Jewelry Special Induction Dryer" is a new product from the jewelry industry with the recent research and development.The dryer has the features like engrgy saving,durable ,safe to use and so on. 2.The design is user friendly.It is simple to use in a wide range of workpieces.And they can be dried very fast. 3.The dryer uses the most advanced infrared sensors,which can automatically sense the boby and the object. 4.After the human body leave the sensitive zone,the dryer will cool itself them shutdown automatically.Less energy consumption and safer. 5.The internal is a heat-resisting quartz,and outside with a stainless steel shell.The shell is not hot.So,it is durable and more secure. 6.The temperature and the wind-force are adjustable,uniform and stable.It can meet the different needs for different jewelry pieces.

Auto Vacuum Casting Machine

Model: BK-0160

Power Supply 380V 50Hz , 3 phase Power Input 15KW Vacuum speed -760mmHg,15L/sec Max temp 1450℃ Melting speed 3-5min Max pressure 2500hps Capacity 2.4KG.(18k gold) Suitable Metal K Gold,Gold, silver, copper Casting item size 127MM*235MM Cooling water water chiller or tap water (optional) Outside size W800xD900H1300mm Weight 155KG Description 1. PID temp control system, max temp 1450℃, temp tolerance ±2℃. 2. Strong electromagnetic stirring to ensure metal with even color. 3. Automatic control and induction heating, high intelligent, fully auto or semi auto is for option, Chinese and English are swiched. 4. More than 50 memory programs, any time you can check and change parameter setting, improve your casting quality, various casting mode for option. 5. Whole casting process can visually seen, air pressing lock system, equipped with safety valve to ensure safety. 6. Both melting and casting are done under vacuum condition, maximally control oxidation. 7. Casting cylinder go up and down automatically helps casted items to be took out easily. 8. Various size casting cylinder is for option. 9. Big capacity, can cast 2.4kg 18k gold. 10.Various alarm system, unit stops working immediately if any error occurred,maximally protect machine. 11.Compact design , small size. 12.Beading machine is for option. 13.Unique casting cylinder separated from vacuum device, to reduce bubble to minimum. 14.Touch interface, chinese and english adjustable, perfect combination of traditional workmanship and advanced technology.

Continuous Casting Machine

Model: BK-0159

voltage ：380V±20% 50/60HZ,3 phase Max input power：18KVA Frequency：1KHZ-25KHZ Suitable condition：depends on the capacitor, induction coil and other heating parts. Parameters: Suitable metal：K gold, gold,silver, copper Suitable mould：Size can be customized Protection gas：Nitrogen gas, or argon gas Temp range：0~1150℃（K gold） Cooling method：Purified water Casting type：Continuous casting Abnormal alarm：Self detect errors and stop working Ambient temp：5℃~40℃ humidity : less than 80% Out source：GAS Water temp : 10℃~20℃ Size ：W80xD60x H165mm Details It's economical , practical and efficient features is for your first choice. Besides it's high efficiency, it's also with low wastage, flexible operation bring your ideal casting effect. 1. Whole melting process is protected with argon gas to prevent metal oxidation, twisting forced casting method. 2. Quick melting can casting, suitable for K gold, silver wire, tube, slice, bar and other shapes. 3. Downward casting to make high requirement, ideal casting effect. 4. Unique induction heating with auto stirring function to strengthen the power, and to make even color items, big casting capacity to improve you production efficiency. 5. Accurate temp control to make a perfect condition for casting. 6.Various self error detect system to provide you a safe casting process. 7. Hydraulic cutter is for option. 8. Digital PC control, intelligent working.

Platinum Centrifugal Casting Machine

Model: BK-0158

Power input：18KW Voltage：380V Size（MM）：L800*W600*H1200mm.

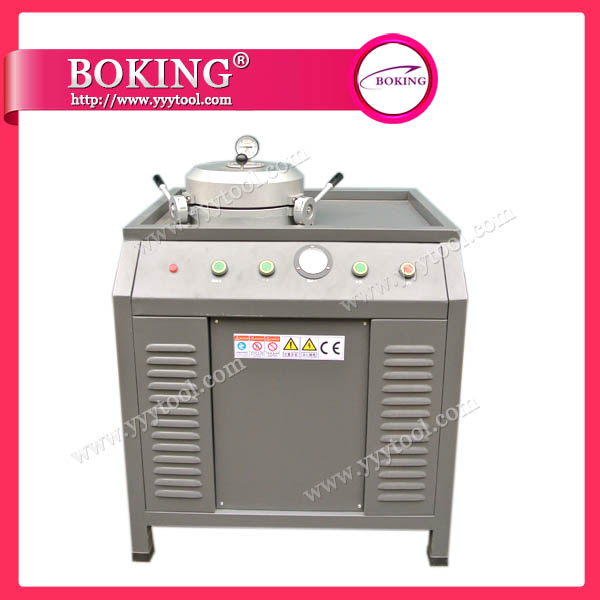

Casting Machine

Model: BK-0157

Power input：4KW Voltage：380V Size（MM）：L800*W1000*H700mm.

Casting Auto Vacuum Mixer

Model: BK-0156

Power input：4KW Voltage：380V Exhaust speed：15L/S Max pressure：6.0X10-2 Size（MM）：L750*W850*H1250mm. Features One time can make investment capacity 5 pcs of 4"x10" flasks, fast and convenient operation. The most advantage of this machine is vacuum start while investment mixing, to have investment mixing and investment injection both working under vacuum condition, save your time, and reduce bubble to make a smooth surface item. It is a necessary equipment for high accuracy casting. Operation instruction Set mixing time(about 3-4 mins) and vacuum time(7-8mins) Put flasks into down chamber Pour suitable water into mixing chamber, then add investment, after that start mixing and vacuum. When mixing finished, buzzer alarms, then start pour mixed investment into flasks, vacuum again, buzzer alarms when vacuum finished. Finally take out the flaks which is full with investment.

Investment Remover

Model: BK-0155

Voltage:380V Power input:1.5KW This product is more suitable for low temp investment remove, put the flasks under the press plunger, after few minutes you can take the flaks out, time saving, convenient operation. Flask size diameter should between :3inches -5 inches height should less than 10 inches !

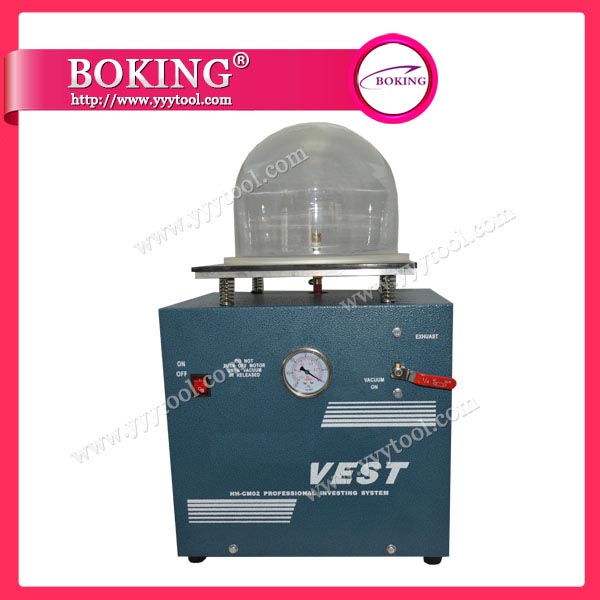

Vacuum Casting Machine

Model: BK-0133

Valtage:220V,50/60HZ, HP: 1/2 CFM: 3 Investment Plate Size: 11" x 11" Bell Jar: 9" Diameter x 8" High Shipping Weight: 50 lbs Dimension: 15"W x 8"D x 18"H Unit comes complete as shown. Table Top Vacuum Investment 220v/50/60Hz/1Ph 9" x 8" Acrylic Bell Jar

Casting Machine

Model: BK-0132

For both standard and perforated flasks, our benchtop caster allows you to invest your flasks under vacuum on the left side of the machine and vacuum cast on the right side. Turn the control handle left to "Investment Table," and the powerful 3 CFM internal vacuum pump pulls air bubbles from the investment under a 9" diameter x 8-1/2" high bell jar. Turn the handle to "Casting Chamber," and vacuum is redirected to the casting side. Casts both standard and perforated flasks which fit into the well on right side of machine so that vacuum pulls from both the walls and bottom of the flask, ensuring a complete fill and denser casting. T1.5 includes: Two adapter plates to cast 3-1/2" and 4" dia. perforated flasks (no adapter plate needed for 5" flasks) Adapter plate to cast solid-wall flasks Bell jar, flask tongs, vacuum & casting pads, 1 pt. vacuum pump oil 3-1/2" x 4" perforated flask, 3-1/2" sprue base
