Use instruction:

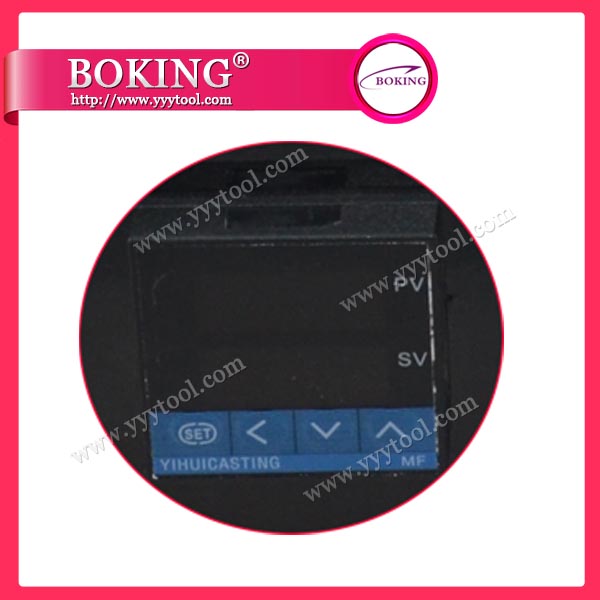

New type melting furnace apply SSR controller, alloy made heater with melting temp up to 1900℃, high temp proof ceramic melting
chamber , high aluminium protection and other advanced, top quality components to improved it's durability and
working efficiency over current markets furnaces.
Max Temperature of machine: 1150℃
I. Main parameter
Capacity |
1kg |
2kg |
3kg |
Power input( (w) |
1500 |
1600 |
1700 |
Power supply(220v) |
50,60hz/7A |
50,60hz/7.5A |
50,60hz/8A |
Power supply(110v) |
50,60Hz/14A |
50,60Hz/15A |
50,60Hz/16A |
Measurement accuracy |
+ 0.5%FS |
+ 0.5%FS |
+ 0.5%FS |
Working environment |
0-50℃, 30-85%RH |
0-50℃, 30-85%RH |
0-50℃, 30-85%RH |
Net size(cm) |
L31xW36xH37 |
L31xW36xH37 |
L31xW36xH37 |
Packing size |
L38xL38xH42 |
L38xL38xH42 |
L38xL38xH42 |
Net weight(kg) |
11 |
11 |
11 |
Packing weight(kg) |
13 |
13 |
13 |
II. Warranty & Guarantee
1. Electrical control parts : 1 free year warranty.
2. Heating coils and thermo couple are consumables: 3 month free warranty, but it excludes when clients use our furnace to recover gold, silver which contains acid or alkali materials,
in the case heating coils and thermo couple are not included in our warranty scope.
3. High temp ceramic chamber: 6 month free warranty.
4. All man made problems are not included in above mentioned warranty terms.
