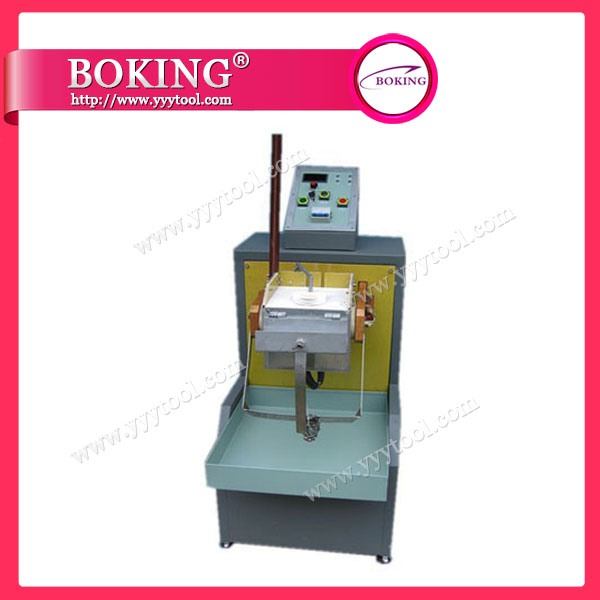

Melting Furnace for Platinum

I .  Brief Introduction

Apply big power high frequency induction heating system to melt  platinum or palladium.  High frequency power not only provide fast melting  but also electromagnetic mixing function which helps making highly even metal liquid .

This furnace is easy operation, convenient maintenance,  reliable quality, safety liquid splash and big wastage resulted by traditional oxgen gas melting, what’s speed effectively improve your production efficiency .

II .   Technical Parameters

1.Power Supply ：380V-420V, Three Phase

2.Output Power ：8-12KW

3.Melting for metal：Platinum, Gold, K-Gold, Silver, Brass

4.Max Capacity ：1Kg

5.Melting Time ：1～2minutes

6.The Max Temperature ：1800℃

7.Cooling Method：running water / Water Cooled Machine

8.Size ：400×600×1300mm

9.Weight ：93Kg

III. Operation：

Power on →open water faucet → put ceramic crucible in the machine→put metal in the crucible→press heating switch→press stop switch→tongs the crucible and pour the metal liquid

IV . Attention:

1、           Can’t be water-break during the using machine. If happens by accident, need to pick up the crucible at once, in case burn out the copper ring

2、           Don’t press the heating switch without crucible .

3、           Press stop switch first, then pouring the liquid after the metal melted .

4、           If the work is finished everyday , pls take away the crucible and then cut off power

5、           When water flow indicator light is shut off ,  it stands for out of water or low water pressure. And now the machine will  the function of  protection,  so can't be heating
