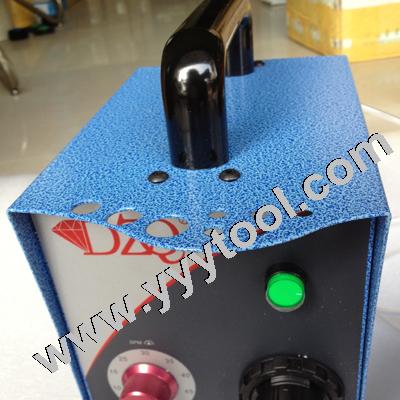

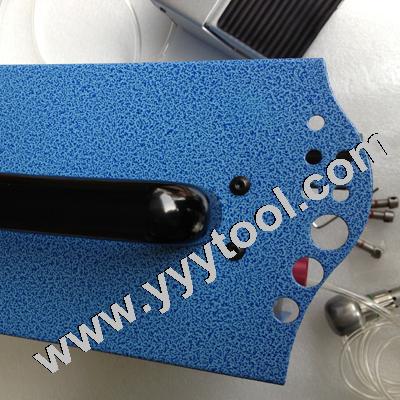

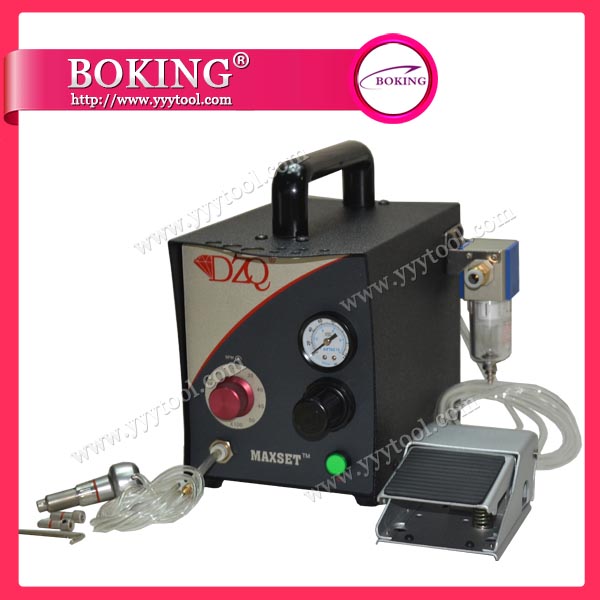

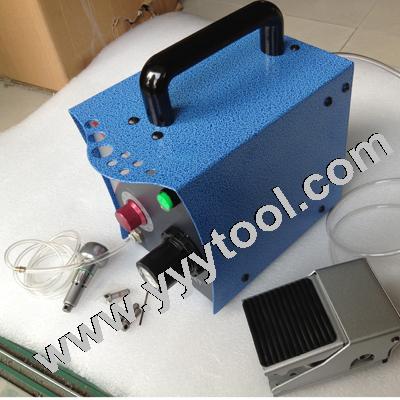

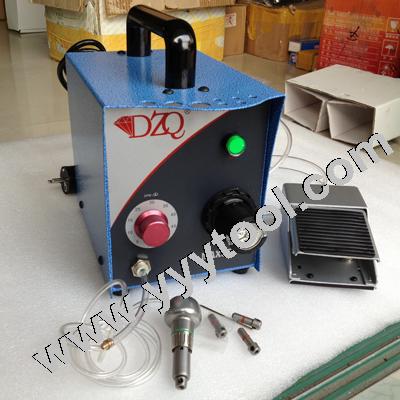

Voltage:220V,50/60Hz,
Power:60W,
Weight:7.5kg,
Speed:50-500rpm
Diameter:245*150*190mm,
Packing Size:330X230X310mm.
1. DZQ AIR FILTER
Connect the air tilter to the GraverSmith by loosening the side cover screw and sliding the bracket onto the screw.RE-TIGHTEN screw.

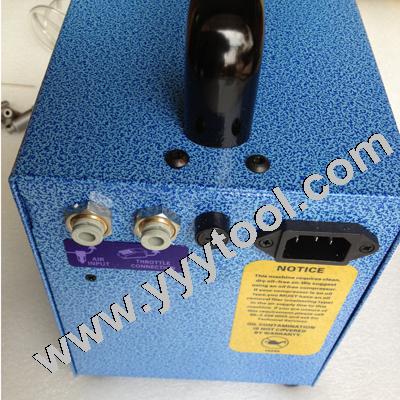

Find the black hose 139mm(5 1/2”).Connect one end to the air input quick connect fitting on the back of the machine and the other end to the straight quick connect fitting.
Connect the air compressor hose to the 90°quick connect fitting or the barbed fitting supplied.
NOTICE:This machine requires clean,dry oil-free air.We suggest using an oil free compressor.If your compressor is an oil type,you MUST have an oil removal filter,coalescing type(#004-579 or equivalent),in the air supply line to this machine.If you are unsure of this requirement.
2. DZQ FOOT THROTTLE
Connect the foot throttle hose to the throttle commection on the back of the machine.
3. DZQ IMPACT HANDPIECE
Connect the handpiece hose to the handpiece quick connect fitting.
4. HANDPIECE TUNING

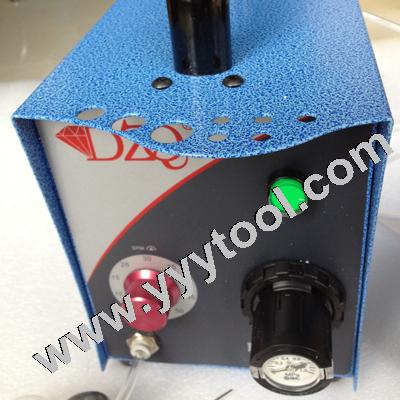

Set the stroke per minute(A) to 2300.Set the main air regulator knob(B) to 0.1-0.4 BA R(2-5PSI).
Hold the handpiece you have selected to use vertically,tool holder end up,next to your ear.Without depressing the foot throttle or paim control,Slowly increase the air pressure until the handpiece begins to buzz.Continue to increase the air pressure until the handpiece vibrates and knocks.Slowly add air pressure until the knocking stops and 2 psi (.13 bar ).This is the perfect air pressure for each handpiece.Now you are free to move the SPM (strokes per minute ) dial to whatever setting desired.
