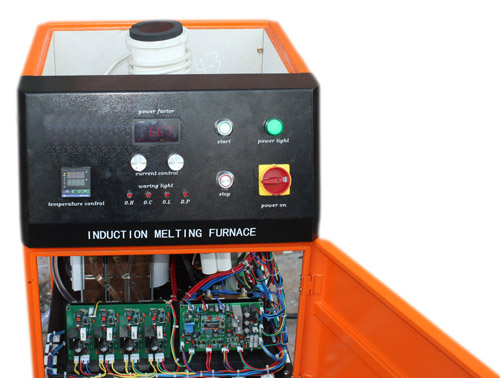

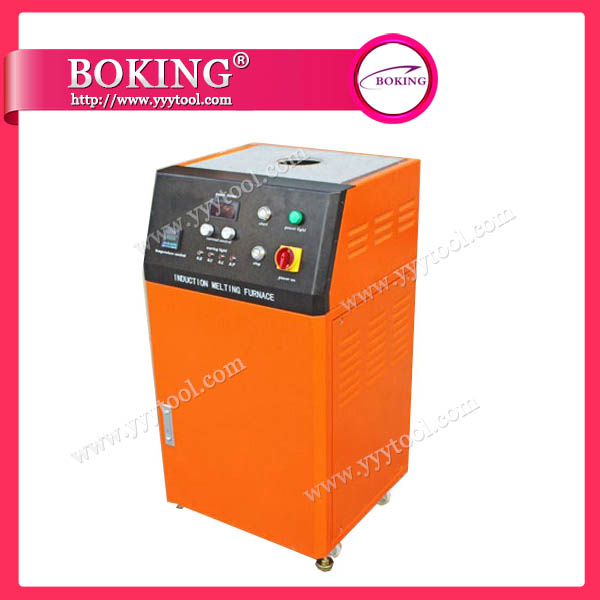

Induction Gold Melting Furnace
Model No : BK-0152

Detail

Melting capacity：2kg,3kg,4kg,5kg,6kg,8kg

Warranty：1 year

Parameters :

MODEL	BK-0152-2KG	BK-0152-3KG	BK-0152-4KG	BK-0152-5KG	BK-0152-6KG	BK-0152-8KG
Power Voltage(V)	AC200V/1ph AC380V/3ph ±15%	AC200V/1ph AC380V/3ph ±15%	AC200V/1ph AC380V/3ph ±15%	AC380V/3ph ±15%	AC380V/3ph ±15%	AC380V/3ph ±15%
Frequency(HZ)	50/60	50/60	50/60	50/60	50/60	50/60
Rated Input Current(A)	18/13	20/15	24/18	19	20	21
Output current adjust(A)	100-400	100-400	200-450	200-500	200-550	200-600
Duty Cycle (%)	100	100	100	100	100	100
Stand-by Wastage(W)	60	60	60	60	60	60
Efficiency (%)	85	85	85	85	85	85
Power Factor	0.9	0.9	0.9	0.9	0.9	0.9
Insulation Grade	F	F	F	F	F	F
Housing Protection Class	IP21	IP21	IP21	IP21	IP21	IP21
Weight(KG)	80	80	80	80	80	80
External Dimensions(mm)	610X590X1030

Melting time for each cup:3-4.5 min

Power Input:6KW

Description：
1. Amelting equipment for gold, silver, copper and other non ferrous metal melting.
2. Apply IGBT technology, big output power, stable high efficiency
3 .With various protection as over voltage protection, over current protection,
insufficient water protection over heating protection, safe and reliable.
4. Adjustable melting temp, digital display, good insulation
5. 100% full load, 24 hours continuous working.
6. Quick temp rising, electricity saving, low melting cost with high cost efficiency.
7. Cabinet casing, compact design with small size and low weight, easy
operation, simple and convenient maintainance
