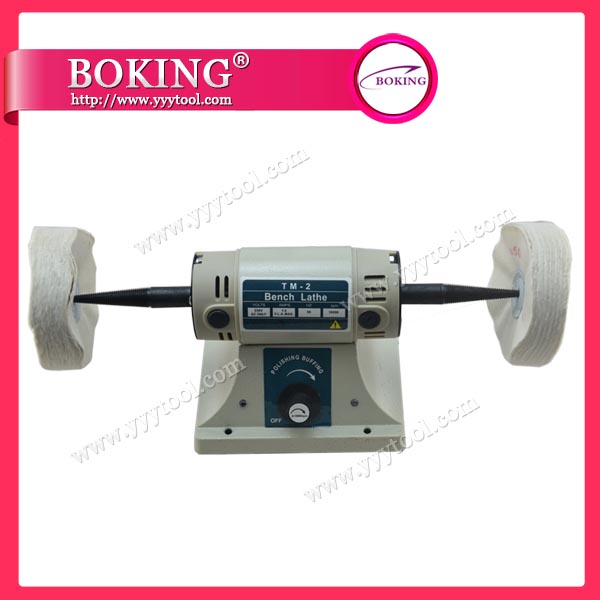

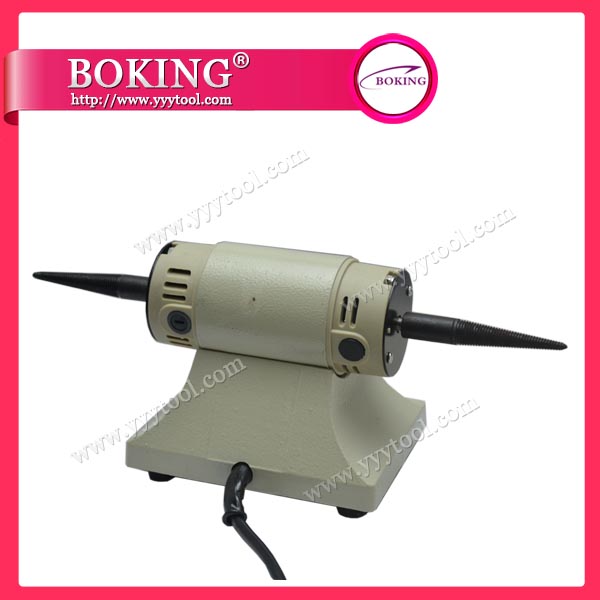

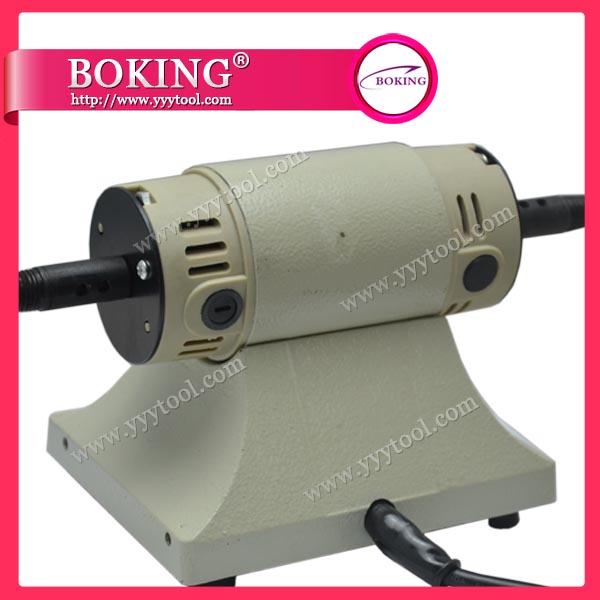

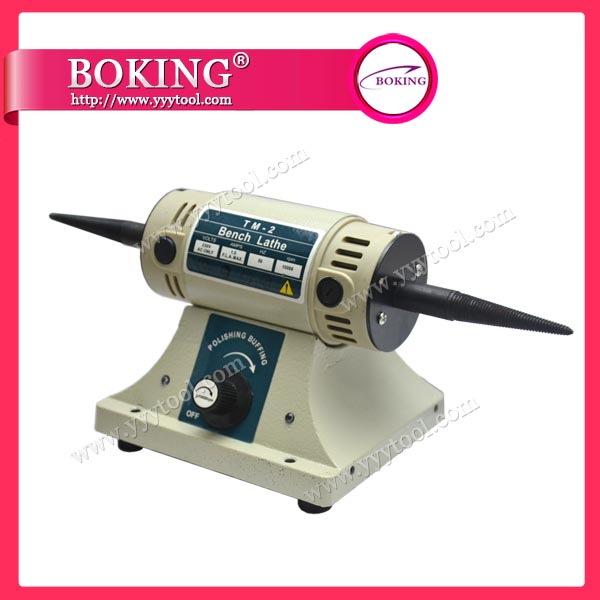

FOREDOM Bench Lathe
Model No : BK-0099

Detail

Weight:3kg,

Height:5*1/8(130mm),

Width:13"(330mm)between spindles,

Packing Size:26.5*15*15.5cm

1/6HP high Torque Motor 125 Watts (continuous,rating) 5/16" Dia.Dotor.Shaft Ball Bearing 0-10000RPM.

Guideline for Buffing and Polishing

Type of Material	Iron, Steel Hard Metals	Brass,Cooper Soft Metals	Gold ,Siver Plated ,Solid	Brass Plate Copper Plate	Plastic
Operation	Cut color	Cut color	Cut color	Cut color	Cut color
FOREDOM Compound	Emery White (#4001) Rouge (#4003)	Tripoli White (#4002) Rouge (#4003)	Do Red Not Rouge Cut (#4004)	Do Tripol Not (#4002) Cut	Tripoli White (#4002) Rouge (#4003)
SFPM	To figure Surface Feet Per Minute: 1/4diameter (in inches )of wheel x spindle speed in RPM = SFPM Generally,speed of 1750 to 2450 is recommened for polishing. Buffing requires a higher speed of approximately 3450 to 7000 SFPM

Bench Lathe Attachments: Tapered Spindles. Wheel Mandrels .Cha-1Collet Holder ,CHA-4 Collet Holder , BO-14N Flexade

O peration

Advantage:

B ecause of the higher maximum speed (approximately 7,000RPM to 7,500 RPM) and variable speed control,the Foredom Bench Lathe has several advantage over concentional single or two polishing and buffing lathes:

1.The same size buffing wheel can be used to obtain different suface , as measured in surface feet per mimute (SFPM). A3拻 or 4拻 diameter buff can provide the 1,750 to 3,450 SFPM recommended for buffing ,The chart below shows the SFPM obtained with different diameter wheels at full ,medium ,and low speeds,

2.The SFPM can be varied while will using the same wheel ,This willl give better results on different types of material.

3.The 7,000 RPM maximum speed will enable you to get much higher SFPM with smaller buffs such as 1拻 to 2拻buffs or inside ring buffs than slower single or double speed equipment

4.The maximum speed of 7,000 RPM is also fast enough to permit the use of small mouted abrasive points ,brushes ,cutters or other accessories ,in the two collet holders CHA-1 and CHA-4,and B Flexades which are avilable as optional accessories .

For additional information on buffing and pollishing procedure ,wheel selectinon ,and Foredom buffing and polishing compounds,please refer to Form No.1234

SPEED SFPM

1"Dia,Wheel

Full 7.000RPM 1.750

Med 4.000RPM 1,000

2"Dia,Wheel

Full 7.000RPM 3,500

Med 4.000RPM 2,000

SPEED SFPM

3"Dia,Wheel

Full 7.000RPM 5,250

Med 4.000RPM 3,000

4"Dia,Wheel

Full 7.000RPM 7,000

Med 4.000RPM 4,000

6"Dia,Wheel@1,725 PRM =2,600 SFPM 6"Dia,Wheel @3.450 RPM =5.200 SFPM

Cotton ,chamois or felt or buffs over 4" in diameter shoud not be used with the Bench Lathe
